MaxiBAS BT608
MaxiBAS BT608
Battery Testing and Analysis
The BT608 is a comprehensive battery and electrical system diagnostics tool featuring Adaptive Conductance technology to identify low-capacity batteries and thereby reduce battery misdiagnosis. The Android-based, Wi-Fi touchscreen tablet tool displays a quick battery health status, enables an automatic battery registration and features advanced AutoVIN and ScanVIN functionality for quick vehicle identification and battery specifications. The tool features a built-in thermal printer and one year warranty.
![](https://autel.com.my/wp-content/uploads/2024/08/mb_bt608_002.png)
![mb_bt608_002](https://autel.com.my/wp-content/uploads/2024/08/mb_bt608_002-150x150.png)
![mb-bt608_003](https://autel.com.my/wp-content/uploads/2024/08/mb-bt608_003-150x150.png)
![mb_bt608_004](https://autel.com.my/wp-content/uploads/2024/08/mb_bt608_004-150x150.png)
Description
Description
- Test 6- and 12-volt Batteries: 100 – 3000 CCA
- Test 12- and 24-volt Cranking/Charging Systems
- Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
- Uses Adaptive Conductance Technology to Detect Battery Capacity Reducing Misdiagnosis
- Auto Battery Reset / Print Test Reports Via Built-in Thermal Printer
- AutoScan and VinScan for Quick Vehicle Identification and Battery Specifications
- Illustration Instruction Guides for Battery Positioning and Testing
- 5.5-inch Touchscreen / Android 9.0 / Wi-Fi Software Updates
- Read and Erase Error Codes

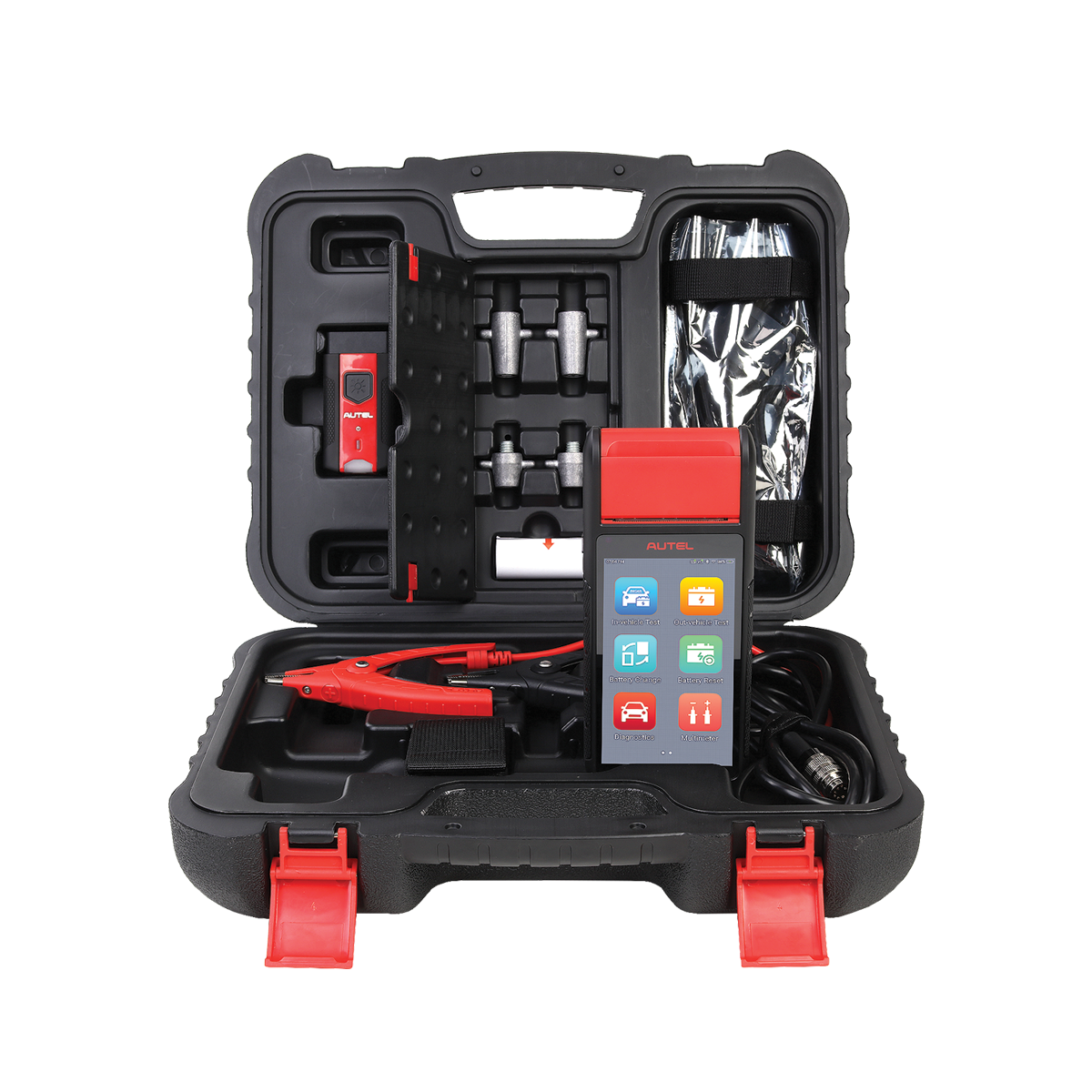

- Includes Bluetooth VCI, Clamp Cables, Four Battery Side Post Terminals (Types S & T) and Thermal Paper Roll
- Wireless Tablet Tool / 1.5 GhZ Quad-Core Processor, 32GB Memory, 2GB RAM and 6-Hour Battery Life
Specifications
Specifications
Operating System | Android 9.0 |
Screen Display | 5.5″ LCD touch screen with 720*1280 resolution |
Storage | 32 GB |
Connectivity |
Wi-Fi (802.11 a/b/g/n/ac) USB 2.0 , Type C Bluetooth® 5.0+EDR |
Camera | 8 Megapixel |
Input Voltage | 5V DC |
Working Current | < 450 mA at 7.7 V DC |
Internal Battery | 7.7 V, 3000 mAh |
CCA Range | 100 to 3000 A |
Voltage Range | 1.5 to 36 V |
Operating Temperature | 0° to 50° C (32° to 122° F ) |
Storage Temperature | -10° to 60° C (14° to 140° F ) |
Dimensions (W x H x D) | 204 mm (8.03″) x 90 mm (3.54″) x 32 mm (1.25″) |
Weight | 510 g (1.12 lb.) |
