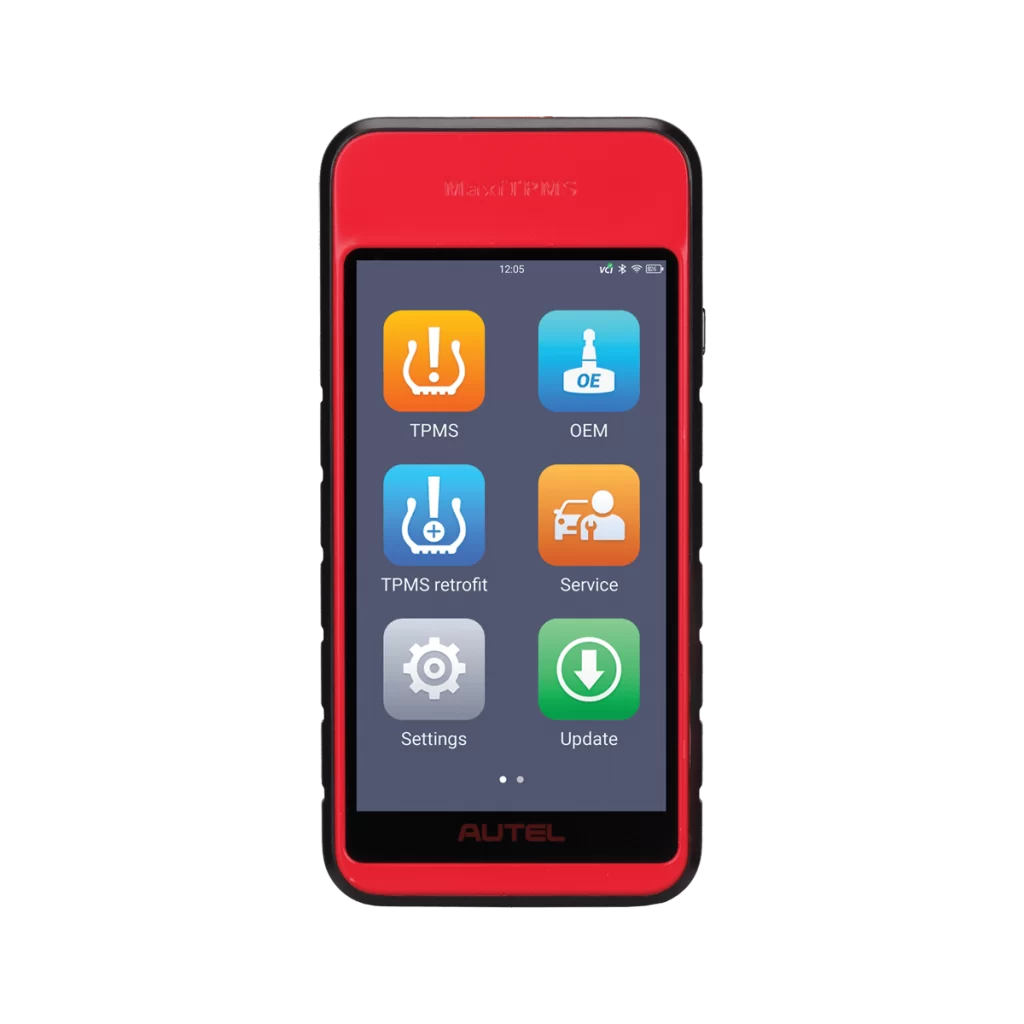

MaxiTPMS ITS600
MaxiTPMS ITS600
Handheld TPMS Service & Diagnostic Tablet
The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, two MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform an all vehicle systems diagnostics and perform four common maintenance services. The ITS600 is compatible with Autel’s TBE200 Tire Tread & Brake Disc Wear Analysis tool, sold separately. The ITS600 includes one-year free TPMS software updates and a year limited warranty.
- Complete TPMS Service and Diagnostics Tablet
- Wireless Touchscreen Android-based Tablet Tool
- Activates, Reads and Relearns All Known Sensors
- Two MX-Sensor Program Modes; Batch Program Up to 20 MX-Sensors
- 5.5 Inch Color Display; Android 9.0 OS

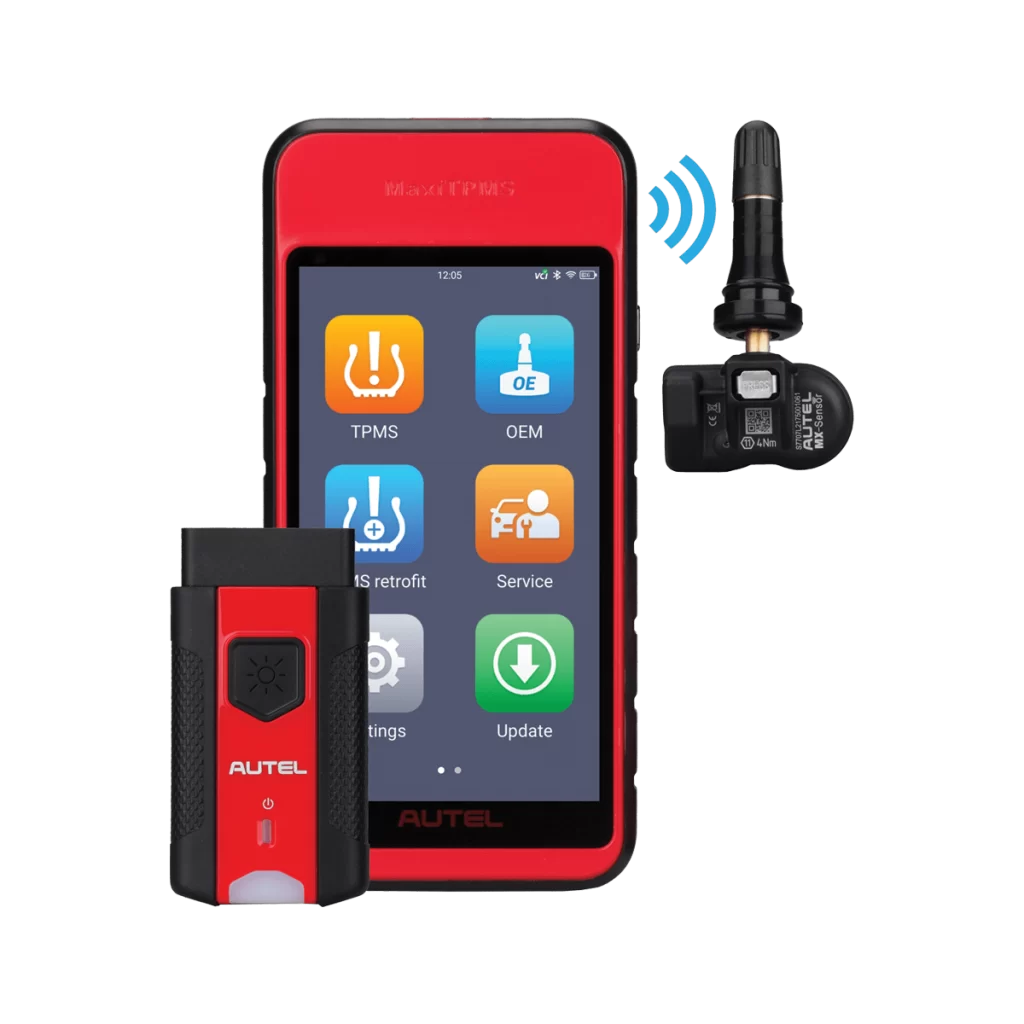

- Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
- On-Tool DOT Tire Registration
- Enhanced, At-a-Glance Diagnostics Status Screen
- Rapid VIN Acquisition Via Optical VINscan Function
- Read/Erase All System Codes and Perform OLS, BMS, SAS and EPB
Everything TPMS Solutions
- Activates, reads and relearns all known sensors
- Enhanced, at-a-glance diagnostics status screen
- Fast OBDII relearn for most vehicles
- Program MX-Sensors to replace 99% of OE sensors
- Two MX-Sensor program modes; batch program up to 20 MX-Sensors
- Includes wireless Bluetooth vehicle communication interface (VCI)
- Tire pressure placard value reset
- Read/Clear TPMS system codes & view live data
- Free Wi-Fi software updates for the life of the tool
Quick Vehicle ID Technology
- Rapid VIN acquisition via optical VINScan
- QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
- Identify MMY and sensor OE part number via VIN decoding
Diagnostic & Service
- Oil light reset
- Electronic brake service
- Battery registration
- Steering angle reset
- Included service function updates are free for the life of the tool
- All systems diagnostics and maintenance services software available with Pro Upgrade purchase
TPMS Test Report
DOT
- Quick & Easy Tire DOT Number Scan
- Tire Expiration Notice
- Tire Recall Lookup Tread Depth & Brake Disc Wear
- Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
- Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280×720 resolution |
| Connectivity |
|
| Camera |
|
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output |
|
| Power and Battery |
|
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temperature | -10 to 45°C(14 to 113°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight | 368g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
